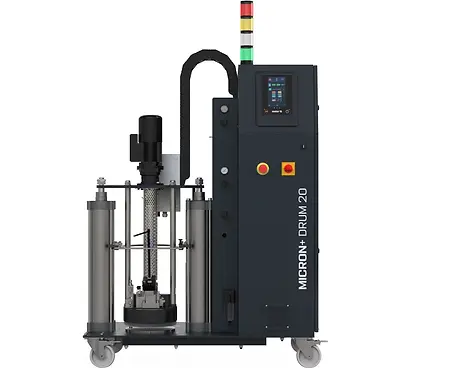

PS DRUM UNLOADERS

Size of drum to be used : Ø280 (interior) x 400mm (up to 20 litres) (Ø286                                                            USA).



Type of melting plate :      Smooth and radial fins



Melting rate (*) :                 Up to 18-20 kg/h



Pumping capacity (*) :  Single pump 1, 2.5, 4 and 8 cc/rev                                                                        Double pump 2x0.93, 2x1.86, 2x3.71 and 2x4.8 cc/rev



​Number of pumps:           1 single pump or 1 double pump



Number of hydraulic outputs: 2 per pump (3/4’ UNF thread)



Number of electrical outputs: Up to 10 outputs



Motor power:                            0.250 kW



Speed:                                 10-80 rpm (range 0-100 rpm)



Temperature range:         40 to 200ºC



Temperature control:       RTD ±0,5ºC



Maximum power pressure: 80 bar (1.160 psi) (do not exceed 70 bar)



By-pass valve: Pneumatic (manual or automatic pressure regulation) Mechanic



Maximum power supply: 1 single pump/ 2 outputs - 5,000 W/ per phase 1                                                       double pump/ 4 outputs - 5,000 W/ per phase



External functions: Temperature ok output, Empty drum output, Under                                                    maintenance input, External motor startstop control,                                                   External motor speed control

​

Electrical requirements: 3N ~ 400V 50/60 Hz + PE 3~480V 50/60 Hz +PE



Options: Hose guide springs

                Adhesive Delivering Application (ADA)

Size of drum to be used : Ø571 (interior) x 950mm (up to 200 litres)

​

Type of melting plate : Smooth, radial fins and parallel fins

​

Melting rate (*) : Up to 165 kg/h

​

Pumping capacity (*) : Single pump 1, 2.5, 4, 8, 15, 20 and 30 cc/rev

                                         Double pump  2x0.93, 2x1.86, 2x3.71 and 2x4.8 cc/rev

​

Number of pumps : 1 single pump or 1 double pump

                                     2 simple pumps up to 8 cc/rev

​

Number of hydraulic outputs : 2 per pump (3/4’ UNF thread)

​

Number of electrical outputs : Up to 10 outputs

​

Motor power : 0.375, 0.55, 0.75, 1.1 kW depending on type of pump

​

Speed : 10-80 rpm (range 0-100 rpm)

​

Temperature range : 40 to 200ºC

​

Temperature control : RTD ±0,5ºC

​

Maximum power pressure : 80 bar (1.160 psi) (do not exceed 70 bar)

​

By-pass valve : Pneumatic (manual or automatic pressure regulation) Mechanic

​

Maximum power supply : 1 single pump/ 2 outputs - 9,900 W/ per phase 1                                                         double pump/ 4 outputs - 11,700 W/ per phase

​

External functions : Temperature ok output, Empty drum output, Under                                                     maintenance input, External motor start-stop control,                                                 External motor speed control

​

Electrical requirements : 3N ~ 400V 50/60 Hz + PE

                                             3~480V 50/60 Hz +PE

​

Options : Smoke extractor hood

                 Hose guide springs

                 Adhesive Delivering Application (ADA)

                 Reinforced fixing for cardboard drums

                 Wheels Hose guide springs

The new PS20 NS+ offers optimised melting capacity, reducing energy consumption to a minimum.

​

• Continuous block production of PUR, reactive polyolefin and non-reactive adhesives



• MELT-ON-DEMAND feature: smart melting for adhesive care



• NON-STOP system to avoid unwanted machine stops



• Leak tight design of melter assembly
