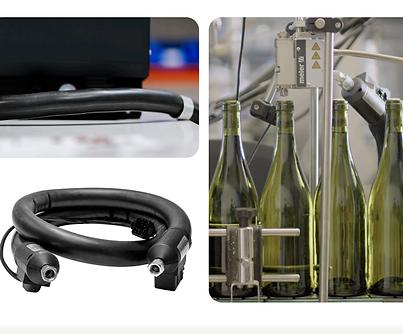

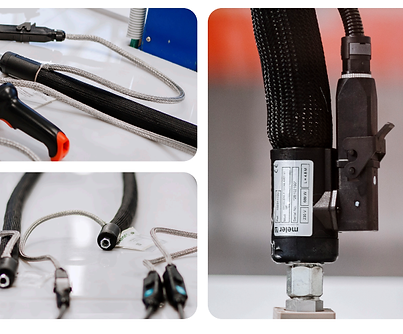

HEATED HOSES FOR HOT MELT ADHESIVES

SPECIFICATIONS

Diameter: 6, 8 and 13 mm

Lengths: From 0.6 to 7.2m

Maximum pressure 200°C (bar):

156(Ø6), 130(Ø8), 105(Ø13)

Voltage: 230V AC
Max temp: 200°C
Temperature sensor: Pt100, Ni120 and NTC

​

Advantages:

100% Waterproof

Helps improve the cleaning process

Accessibility

Improves machinery maintenance​



USES

Specialized in: Labelling/packaging

Applications: Wet working atmospheres

Markets: Textiles, Automotive, Packaging, Assembly, Mattresses, Wood, Graphic arts, Construction

SPECIFICATIONS

Diameter: 6, 8, 13, 16 and 20 mm

Lengths: From 0.6 to 14m

Maximum pressure 200°C (bar):

156(Ø6), 130(Ø8), 105(Ø13), 77(Ø16) and 77(Ø20)

Voltage: 200/230V AC
Max temp: 200°C
Temperature sensor: Pt100, Ni120 and NTC

​

Advantages:

Process automation​

Improves operational performance

Adaptation to all systems

Increases the quality of your results



USES

Specialized in -

Applications: Wide variety of applications

Markets: Textiles, Automotive, Packaging, Assembly, Mattresses, Wood, Graphic arts, Construction

SPECIFICATIONS

Diameter: 8, 10 and 13 mm

Lengths: From 0.6 to 14m

Maximum pressure 200°C (bar):

130(Ø8), 120(Ø10), 105(Ø13)

Voltage: 120/200/230V AC
Max temp: 200°C
Temperature sensor: Pt100, Ni120

​

Advantages:

Semi-automation of processes
Facilitates application​

Operator protection

Improves the quality of your product



USES

Specialized in: Assembly / Mattresses

Applications: Manual operations, Details and good finishes

​

Markets: Textiles, Automotive, Packaging, Assembly, Mattresses, Wood, Graphic arts, Construction
